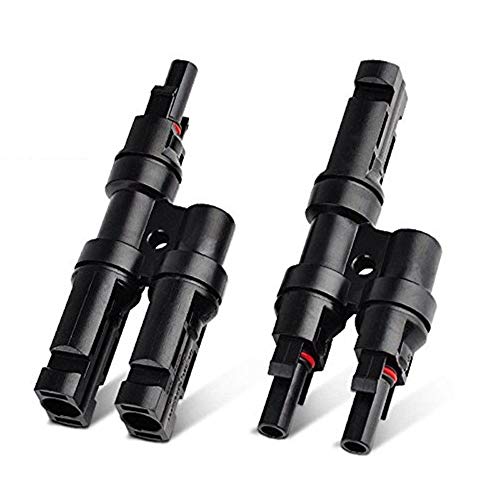

LINKPAL Branch Connectors Connectors Y Connector in Pair MMF+FFM for Parallel Connection Between Solar Panels … (1 Pair)

Brand: LINKPAL

Features:

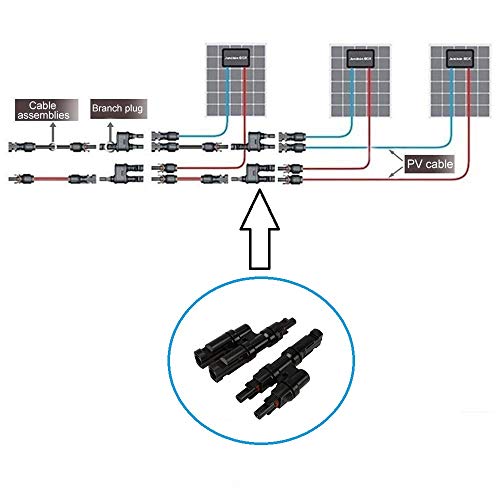

• 1 MMF and 1 FFM Female cable connectors, compatible with Solar connectors also known as Solar T connectors
• Stable self-locking system which is easy to lock and open， Waterproof IP67
• Corrosion-resistant connectors for long-term usage，With excellent aging resistance and UV endurance
• CE and TUV certified Hard plastic UL94-VO, good material make sure the transmission in the stable situation
• Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

Part Number: 5

Details: Easy to install Lightweight and compact, portable and easy to use; Good material make sure the transmission in the stable situation High quality Made with highest quality materials, heavier and sturdier than other similar products in the market, which ensure the long term durability. CE and TUV certified Feature: -1 Pair of H Type MC4 Male/Female Solar Panel Cable Connectors(one female to double male (F/M/M) and one male to double female (M/F/F) -Compatible Mc4 -Compatible with PV cables with different insulation diameters -It can be used in harsh environment -With excellent aging resistance and UV endurance -Created seal, design of dust proof -Load capability with big current and high voltage -Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument -Strong pulling force capability -Resistance of extra high & low temperature and fireproof -Lower contact resistance Specification: -Rated Current: 30A -Rated voltage: 1000VDC -Contact resistance: ≤1mmΩ -Waterproof degree：IP67 -Flame class: UL94-VO -Safety Class: Ⅱ -Withdrawal force: ≥50N -Insertion force: ≤50N -Insulation material: PPO + PA -Connecting system: crimping connection -Contact material: copper, tin plated -Temperature range: -40 ℃ ~ +90 ℃ Package includes: 1 Pair of H Type MC4 Solar Panel cable Connectors(Male & Female)

EAN: 0736900423167

Package Dimensions: 5.2 x 2.5 x 1.0 inches
